• Cubic Boron Nitride
    • Cubic Boron Nitride (CBN) is the second hardest material only to diamond, with the high thermal conductivity, stable chemical resistance, it is suitable for working on ferrous material where diamond abrasives are not normally employed. The CBN products are well suitable for grinding of hardened tool, alloy steel, die and nickel, cobalt-based superalloys.
    • CBN is the abbreviation of Cubic Boron Nitride, It is a kind of superabrasive consist of N(Nitrogen) atom and B(Boron) atom. We can get different colors like black, yellow, brown and amber CBN crystal by adjusting Nitride or Boron content during synthesizing of process. By adjusting the TI (Tough Index) or TTI (Thermal Toughness Index), the friability and strength of the CBN can be controlled to match different working requirement.
    • Sign
      Bond System
      Type
      Vit
      		Vitrified CBN3115, CBN3120A, CBN3210A, CBN3280A,CBN3280B
      M
      		Metal CBN3280A, CBN3280B, CBN3230
      R
      		Resin CBN3110, CBN3115, CBN3120B, CBN3210B,CBN3280B
      El
      		Electroplated CBN3210A, CBN3210B, CBN3280B, CBN3230

  • CBN 3110
    R
    • Black color, irregular shape, high friability and self-sharpness ability, low strength, main application is for resin bond tools.
    Size Available(Mesh)
    60/80 80/100 100/120 120/140
    140/170 170/200 200/230 230/325
    325/400 400/500

    CBN 3115
    Vit
    R
    • Black color, irregular shape, medium toughness, good self-sharpness and friability mainly used for resin, vitrified bond, it is also used for making vitrified bond tools.
    Size Available(Mesh)
    60/80 80/100 100/120 120/140
    140/170 170/200 200/230 230/325
    325/400 400/500

    CBN 3120A
    Vit
    • Brilliant black colour, blocky shape, high toughness, good thermal stability, used for , vitrified bond tools, bring excellent grinding efficiency and long tool life.
    Size Available(Mesh)
    60/80 80/100 100/120 120/140
    140/170 170/200 200/230 230/325
    325/400 400/500

    CBN 3120B
    R
    • Brilliant black colour, sharp shape, good self-sharpness ability and thermal stability, used for resin bond tools.
    Size Available(Mesh)
    60/80 80/100 100/120 120/140
    140/170 170/200 200/230 230/325
    325/400 400/500

    CBN 3210A
    Vit
    El
    • Amber color, regular shape, medium strength, good transparency, used for electroplated, vitrified bond and metal bond tools.
    Size Available(Mesh)
    60/80 80/100 100/120 120/140
    140/170 170/200 200/230 230/325
    325/400 400/500

    CBN 3210B
    R
    El
    • Amber color, regular shape with sharp edge, medium strength, good transparency, used for resin bonded and electroplated tools.
    Size Available(Mesh)
    60/80 80/100 100/120 120/140
    140/170 170/200 200/230 230/325
    325/400 400/500

    CBN 3280A
    Vit
    M
    • Dark brown color, regular shape,smooth,transparent,very high toughness, used for metal, vitrified bond and electroplated tools also for grinding wheels to reach longer working life.
    Size Available(Mesh)
    60/80 80/100 100/120 120/140
    140/170 170/200 200/230 230/325
    325/400 400/500

    CBN 3280B
    Vit
    M
    R
    El
    • Dark brown color, regular shape,smooth,transparent,very high toughness, used for metal, vitrified bond and electroplated tools also for grinding wheels to reach longer working life.
    Size Available(Mesh)
    60/80 80/100 100/120 120/140
    140/170 170/200 200/230 230/325
    325/400 400/500

    CBN 3230
    M
    El
    • Goden yellow color, regular shape, good transparency, with the highest strength and the best thermal stability, used for electroplated tools, metal bonded tools.
    Size Available(Mesh)
    60/80 80/100 100/120 120/140
    140/170 170/200 200/230 230/325
    325/400 400/500

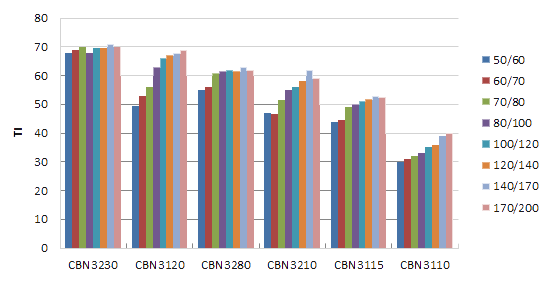

  • Average Particle Strength
  • Technical Specification
    According to China Standard GB6408-1986, GB 6406.2-86, GB 6406.3-86, GB 6406.4-86.
